A Guide to F Coupling Service Factors

There are a number of factors that influence Falk F coupling selection. The first step, of course, is to calculate your torque requirements – grid-style F couplings are designed to handle the most torque of any coupling type. The next rating to consider is service factor.

A coupling’s service factor is based on the estimated severity of torque during operation (culled from engineer experience). In other words, this standard rating system indicates how much torque fluctuation the coupling can withstand while the unit is running. The following is a basic breakdown of service factors for F couplings.

1.0: Couplings with the lowest service factor requires fairly constant torque, such as from centrifugal pumps, blowers or compressors.

1.5: These couplings are built to handle continuous operation with minor torque variations, such as from plastic extruders or forced draft fans.

2.0: This service factor is acceptable for the light shock loads from metal extruders or cooling towers.

2.5: These couplings can endure moderate shock loads from applications such as stone crushers and vibrating screens.

3.0: Systems with heavy shock loads and some negative torques – including roughing mills, reciprocating pumps and compressors – will require this rugged service factor.

For applications involving frequent torque reversals that don’t necessarily cause reverse rotations, consult a Falk engineering expert such as those at Mar-Dustrial. Our experienced, highly trained staff can help you select the right F coupling for the job.

Posted in Products/services, Tips and Tricks | Tagged , | Leave a comment

Importance of Motor Shaft Alignment to Preserve F Couplings

Although a Falk F coupling is known for its ability to tolerate misalignment, it’s critical to keep your couplings operating within acceptable design limits. By optimizing motor shaft alignment, you can help preserve the life of your F coupling as well as any other likely-to-fail components.

Hazards of Motor Shaft Misalignment

Properly aligned shafts permit a smooth and efficient transmission of power between the motor and the driven equipment. However, when the centerlines of the two shafts are not lined up, problems can occur, including:

  • Excessive vibration and noise.
  • Rising temperature within the F coupling and bearings.
  • Premature failure of couplings, shafts or bearings.

Types of Motor Misalignment

When the motor lies at an angle to the driven equipment, angular misalignment occurs. If you were to extend the centerline of each staff, the two would cross each other rather than run along the same line. Angular misalignment can be horizontal, vertical or both and can severely damage both the motor and the driven equipment.

With parallel misalignment, the shaft centerlines remain parallel but are offset from each other. In other words, they do not superimpose, or share the same centerline. This type of misalignment can also be horizontal, vertical or both.

When both parallel and angular misalignment are present, it is known as combination misalignment.

Impact on Couplings

While F couplings are flexible enough to accommodate minor misalignment – and to absorb some of its vibrational effects – they shouldn’t be counted upon to correct extreme misalignment. The design of the F coupling prevents load from being transferred to the connecting shaft, but the excess flexing can cause the coupling itself to fail prematurely.

By employing the right equipment to ensure proper motor shaft alignment, such as laser alignment tools, you can squeeze the most life possible out of your F couplings.

Posted in Machinery Maintenance, Tips and Tricks | Tagged | Leave a comment

Soft Foot: How it Impacts Falk Coupling Alignment

When even one foot of a gearbox differs in height from the others, you’ve got a case of soft foot on your hands. Soft foot occurs when the machine’s casing is not in proper contact with its baseplate. Unless it is dealt with, this condition can cause misalignment, looseness, vibration and internal clearance issues within a gearbox – and it can add extra pressure on any Falk coupling to which the drive is attached.

Identifying Soft Foot

There are two types of soft foot: angular or parallel. With a parallel soft foot, the foot remains parallel to the base but lacks contact. An angular soft foot may make contact with the baseplate, but the contact is not uniform; when the base bolts are tightened, the foot will bend to conform rather than rest securely and evenly on the base. A case of soft foot may be either angular or parallel, but most are a combination of the two.

Causes of soft foot in a gear reducer can include:

  • Warped, dented or otherwise damaged foundation, baseplate or feet.
  • Wrong amount of shims under the feet.
  • Dirt, a spongy layer of oil or other items between the feet and base.
  • An attachment (such as a pipe) that prevents the machine from fully resting on its base.
  • Excessive tension on the feet caused by jack bolts.

A hallmark of soft foot is that when you tighten the bolt where it is located, the relative position of the shaft will change. When using laser alignment tools, you may find that as you tighten a particular bolt, that foot causes a clear change in the vertical or horizontal readings.

Because soft foot can lead to misalignment, it’s common to assume that the misalignment itself is the problem without further investigating the root cause. One way to determine whether soft foot is the culprit is to loosen each foot bolt in turn, leaving the others tight. Normally, loosening a single bolt will increase vibration amplitude; if it has the opposite effect, you’ve got soft foot.

To differentiate soft foot from looseness, take phase measurements between the foot and the base. A difference of 180 degrees points to looseness.

Minimizing Soft Foot

Soft foot can not only cause alignment problems with your Falk coupling, but can take its toll on the entire system. Here are some tips for controlling it:

  • Ensure that the baseplate is installed and leveled to the manufacturer’s specifications.
  • Check that the baseplate and feet are deburred, clean and dent-free around the mounting areas.
  • After checking the reducer thoroughly for soft foot, correct any cases using the minimum amount of shims necessary. Use only shims that are flat, clean and deburred.
  • Tighten foot bolts in 3 passes (first hand tighten, then wrench to about 50 percent, and fully tighten on the third pass) using the same bolt torque pattern each time.

By watching for and carefully controlling soft foot, you can extend the life of your Falk coupling – and any other connected equipment.

Click here for more information on Falk Couplings.

Posted in Machinery Maintenance, Tips and Tricks | Tagged | Leave a comment

F Couplings: Common Types of Failures

A failed coupling can spell disaster for an industrial operation. At minimum, you’re looking at downtime while the repair is made; at its worst, a broken coupling can cause massive financial loss in the form of damaged equipment. Although Falk F couplings have a reputation for longevity and durability – they transmit torque without slip and can accommodate shaft misalignment – they’re not infallible. However, by being aware of the common types of F coupling failures, you can catch problems before they become calamities.

Grid Failures

The grid within an F coupling is a length of flexible alloy steel that snakes through the coupling and connects the two hubs. Its role is to absorb changes in the load, allowing the coupling to continue transmitting torque despite these variations. When cyclic load changes exceed the coupling’s ability to absorb them (often due to torque overload or misalignment), the grid can snap.

How to avoid: Remove the overload from the system, or choose a coupling size capable of handling it.

Hub Failures

An F coupling’s hub teeth are engineered to have at least double the fatigue strength of the grid, which means these types of failures are much less common. Yet a shock or high peak load can still cause the teeth to break or become permanently deformed. A tooth fracture of this type typically occurs after a grid failure, which means the same measures taken to protect the grid will also prevent tooth damage.

The hub shank is another area of vulnerability to consider. Occasionally, cracks may form in the shank, extending through set screw hole or at a keyway corner. Such failures are usually caused by poor installation techniques, which can result in impact loads on the hub.

How to avoid: Ensure the coupling is installed properly, and keep up on regular maintenance.

With correct installation and regular maintenance, F couplings can keep your machinery humming along. If you do experience a coupling failure, it’s critical to take the necessary steps to diagnose the cause and remedy the problem. Here at Mar-Dustrial, we conduct a failure analysis as part of our Falk Repair & Renew services to help you prevent the issue from becoming a recurring one.

Posted in Products/services, Tips and Tricks | Tagged , | Leave a comment

Falk G Couplings: Ideal for High-Torque Applications

GWhen you’re dealing with large, heavy industrial loads, your system must be designed from top to bottom to withstand daily punishment. That means connecting components with rugged couplings manufactured to tolerate high-torque, high-horsepower situations – which is where Falk G couplings shine.

Falk’s Lifelign gear (G) couplings boast unparalleled strength, thanks in part to the naturally high torque density inherent in gear-type couplings. Not only can they withstand more torque than universal joints, but they feature such high torque ratings that engineers can often get away with using a smaller-sized G coupling for a given application. This allows more versatility when designing for limited-space applications that require large bores and high torque loads.

Falk G couplings are employed in a wide range of industries, as outlined below.

High-torque applications: The standard flanged sleeve G coupling is the go-to for most high-torque applications such as bulk handling systems, mixers, pumps, cranes, crushers and sugar mills.

Very high-torque applications: There’s also a larger flanged sleeve G coupling for the roughest high-torque jobs, such as those performed in mining operations, steel and metal mills and other large industrial plants within the paper, sugar rubber and cement industries.

High-speed, low-inertia applications: The continuous sleeve G coupling is commonly found on high-speed equipment with low inertia requirements, as well as for applications that require a low initial cost.

[ Photo by: Michael Schubart, via CC License ]

Posted in Products/services | Tagged , | Leave a comment

Industry Spotlight: Falk Gear Boxes for Pulp & Paper Manufacturing

docscanner-paper-pilesPulling out a piece of paper to write on is such a common activity we do it almost without thought. Yet it takes a massive amount of work to transform raw materials into usable paper – not to mention the considerable muscle of Falk gear boxes and other heavy-duty machinery. At Mar-Dustrial, we regularly supply Falk gear boxes and other components to paper manufacturers such as Boise Inc., which operates across the United States and in several countries.

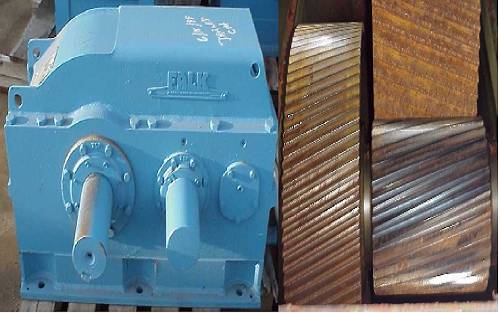

Within a paper mill, gear reducers play an important role in pumps, conveyors, mixer drives and paper machine drives. Parallel, concentric and shaft mount Falk gear boxes are all commonly found in paper-related applications.

How Paper is Made

The first step in making paper is to prepare the pulp, which is made of plant fibers – usually wood, cotton or flax. The material is broken down, often through a chemical pulping process, then refined and blended to create a uniform consistency. The blending takes place within large industrial power mixers; a Falk gear box is typically employed to convert the energy from the mixer’s power source into the torque necessary to churn vast amounts of the pulpy mixture.

Once the pulp is ready, it is fed into a paper machine, which forms it into sheets, presses out the water, then dries and smooths the finished paper. The paper machine will also typically use a Falk gear box to regulate the speed and power of its operations.

A Brief History of Paper Making

Before there were paper machines (or the Falk gear boxes that drive them), paper was considered a precious commodity simply because the process to make it was so laborious. Ancient Egyptians are credited with creating the earliest form of paper, which was made of the sliced flower stems of the papyrus plant, around 2400 B.C. Later, in 105 A.D., a process for soaking, beating and sieving plant fibers to make paper began spreading across China.

From there, paper making remained much the same until the industrial revolution, when mass production became available. Then, in 1838, the first paper made of wood pulp was developed and used as newsprint. It wasn’t long before corrugated cardboard, paper plates and other paper-based products emerged.

Paper plays a critical role in modern living – we all encounter these products on a daily basis and rely on them to perform any number of essential tasks. We’re pleased to contribute to this important industry through partners such as Boise Inc.



[ Photo by: jbj, via CC Lincense ]

Posted in Products/services | Tagged , | Leave a comment

Industry Spotlight: Falk Gearboxes for Gold Mining Facilities

Gold MineMining applications demand the toughest machinery. Heavy loads and rugged, dirty environments require impenetrable, high-torque gear reducers to keep operations humming along. That’s why we recommend Falk gearboxes for mining facilities such as Round Mountain Gold Mine in Nevada.

Within the mining industry, gear reducers are primarily used to slow down the motors in conveyors and crushers, converting raw power into the torque needed to crush through rock and haul heavy loads up out of the earth.

Mining Conveyors

Ore conveyor systems are built to transport large volumes of rock out of the mines for processing – sometimes hauling ore over miles of terrain. (The longest conveyor in the world belongs to a phosphate mine in West Sahara and spans approximately 62 miles.) For these applications, speed takes a backseat to muscle, as plenty of reliable torque is needed to continually move heavy loads.

The Falk shaft mount reducer is a top choice for mining conveyor systems, as it packs a powerful torque output within a compact footprint. Its ability to mount directly onto the driven shaft eliminates unnecessary bulk and allows the Falk shaft mount reducer to slip into the minimal spaces often found in conveyor assemblies. Concentric and parallel shaft reducers are also commonly used in conveyor systems.

Mining Crushers

Like conveyors, ore crushers require plenty of torque to crush large rocks into smaller pieces, making it easier to differentiate valuable ore from the surrounding rock. Types of crushers include:

  • Jaw crushers: These vertical mechanical jaws act as a nutcracker, crushing the material progressively smaller as it travels downward.
  • Cone crushers: A cone crusher uses a gyrating spindle to squeeze the rock against an outer encasement. The materials become smaller as they move through the crusher.
  • Impact crushers: These devices use impact (rather than pressure) to break up rock. A horizontal impactor uses hammers, while a vertical impactor employs the velocity of a high-speed rotor to throw the material against a crushing chamber.

Falk gearboxes are manufactured to withstand the punishing conditions found in most mining applications. Known for their reliability and long life span, Falk gearboxes offer a variety of design features that allow for easy maintenance, even in dirty mining environments.

[ Photo by: D'oh Boy (Mark Holloway), via CC License ]

Posted in Machinery Maintenance, Products/services | Tagged , | Leave a comment

Product Spotlight: Falk T31 Spacer Couplings

When it comes to pump applications, we’re always quick to recommend the Falk T31 spacer coupling. This high-capacity coupling possesses all of the strength and flexibility of any other Falk grid coupling, while also allowing for easy pump maintenance.

The T31 Falk grid coupling includes a cylindrical piece that separates the pump shaft coupling hub from the motor shaft coupling hub. When maintenance is required, this entire center section drops out to provide enough space for removal of the pump’s mechanical seal, without requiring either the pump body or the driver to be moved.

Industrial pumps are used to handle a wide variety of fluids, from water and cleaning solutions to corrosive chemicals and liquid gas. For example:

  • In a paper mill, a pump is required for what is known as the “trim squirt” application, which focuses a high-pressure jet of water to trim the edges of finished paper products.
  • Food plants employ pumps for coating, mixing, spray drying systems and transferring process liquids.
  • The agricultural industry uses pumps to inject chemicals into field sprayers and irrigation systems.

Routine maintenance is critical to ensure these pumps continue working properly. Fortunately, the center spacers on T31 Falk couplings make pump maintenance a breeze.

Posted in Products/services | Tagged , | Leave a comment

Industry Spotlight: Falk Gear Reducers for Grain Operations

Shelby, Mt Grain ElevatorsDespite a drought-induced corn shortage in the United States this past summer, the United Nations Food and Agriculture Organization estimated a 1 percent increase in worldwide grain production for 2012 – even after a record-breaking yield of 2,295 million tons in 2011. That’s a lot of grain that must be cleaned, processed and stored in silos to await export.

Heavy-duty grain elevators are required to move such large volumes of food from place to place. While most people probably don’t give a thought to how wheat, corn and other grains are handled, we at Mar-Dustrial are aware of how integral grain elevators are to agricultural production – largely because we supply the Falk gear reducer components that slow down their rotational speed. Grain elevators are typically used for:

  • Loading grain into silos for storage.
  • Transporting grain between various levels of a mill for processing.
  • Transferring grain to and from barges or trains for export.

History of Grain Elevators

Before industrial conveyor systems were invented to help transport large volumes of loose grain, crop yields were partitioned into sacks, which then had to be hauled up and down by hand, via pulleys or on the backs of dockworkers.

The earliest version of the grain elevator was invented by Oliver Evans, who during the 1780s revolutionized manufacturing with his automatic flour mill in Newcastle County, Del. The mill, which automatically performed all tasks so the miller had only to start and stop the machinery, included a system of bucket elevators and conveyors to move  the grain between the various floors of the mill. When the U.S. Patent Office first opened in 1790, Evans’ automated flour milling machinery was the third invention to receive a federal patent.

Later inventors adapted Evans’ invention to automate grain transport at other points in the export process. In the 1840s, a merchant named Joseph Dart spearheaded the first official steam-powered grain elevator to help load and unload grain from ships in Buffalo, N.Y. Previously, it could take up to a week to unload a single grain-laden ship; Dart’s elevator worked seven times faster than non-mechanized methods.

These days, grain elevators are a common sight in mills and distribution centers. In fact, the distribution of grain revolves around the location and availability of large terminal elevators, which serve as the launching point for the nation’s grain supply.

[ Photo by: designatednaphour, via CC License ]

Posted in Products/services | Tagged , , | Leave a comment

The Role of Service Factor in Avoiding Gearbox Repair

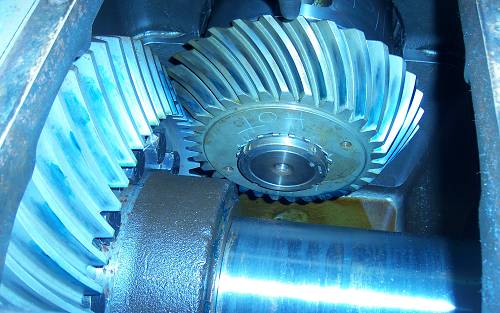

Gearbox RepairThere are many different factors to consider when choosing the right size and type of gearbox for your application – from gear drive rating and speed variation to thermal capacity and drive ratio. Ignore any of these, and you could end up making costly gearbox repairs.

One key element in selecting the correct drive, and avoiding imminent gearbox repair, is service factor. Service factor is a variable used to calculate equivalent horsepower by combining factors such as longevity, reliability and external load dynamics. Each speed reducer is assigned a service factor rating based on these factors.

When determining what drive is needed for a particular configuration, system designers can refer to the list of applications and their minimum recommended service factors published by the American Gear Manufacturer’s Association; these suggestions are based on field experience. However, it’s important to keep in mind that these are minimums only – if the system has severe or unusual load requirements, a higher service factor (or larger drive) should be chosen in order to prevent a failure and the resulting downtime for gearbox repairs. Once the required service factor is identified, the number is then multiplied by the motor nameplate power to determine the size of drive needed.

Because typical service factor values don’t accommodate repetitive shock loading or serious critical vibrations, the designer must identify these conditions beforehand and customize the drive accordingly.

Here at Mar-Dustrial, our experts have vast experience supplying gear reducers for a vast range of applications. Contact us for help selecting the right drive for your system.

Posted in Machinery Maintenance, Tips and Tricks | Tagged , | Leave a comment
